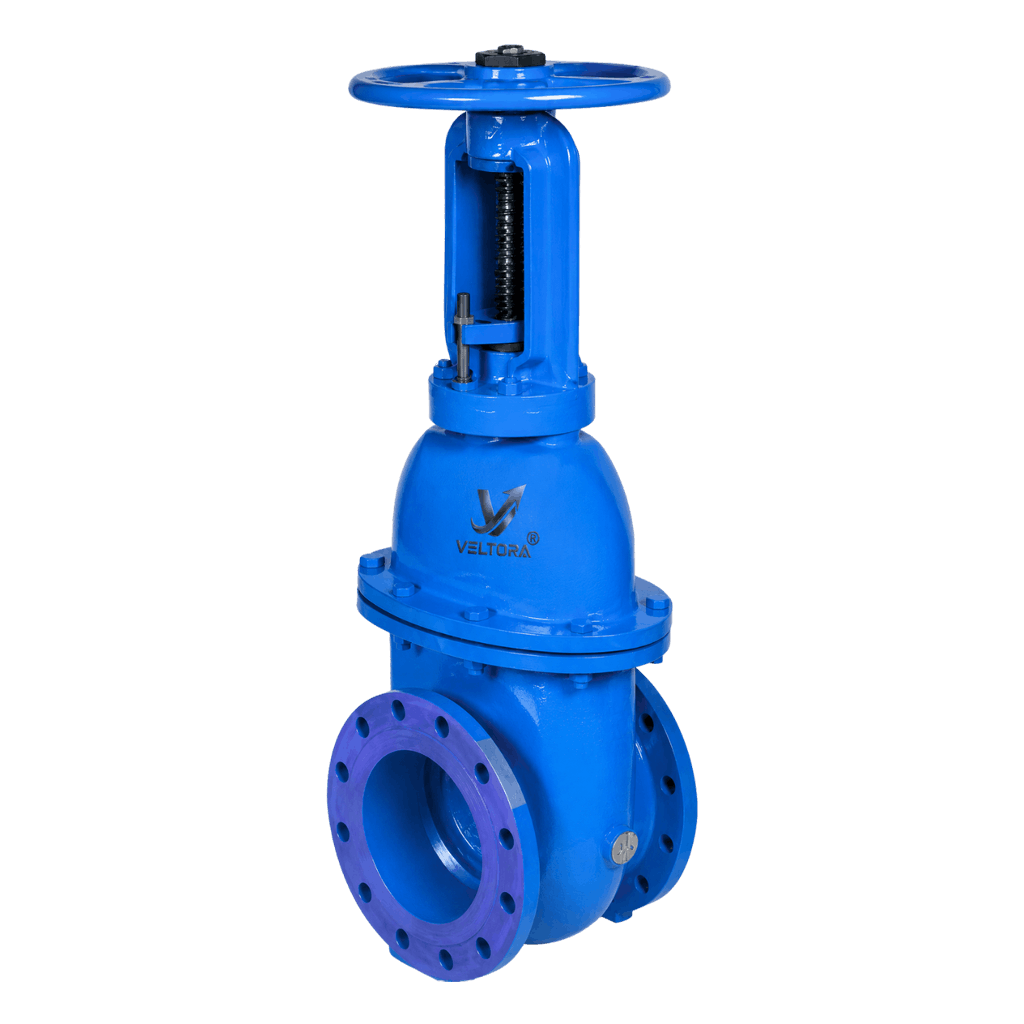

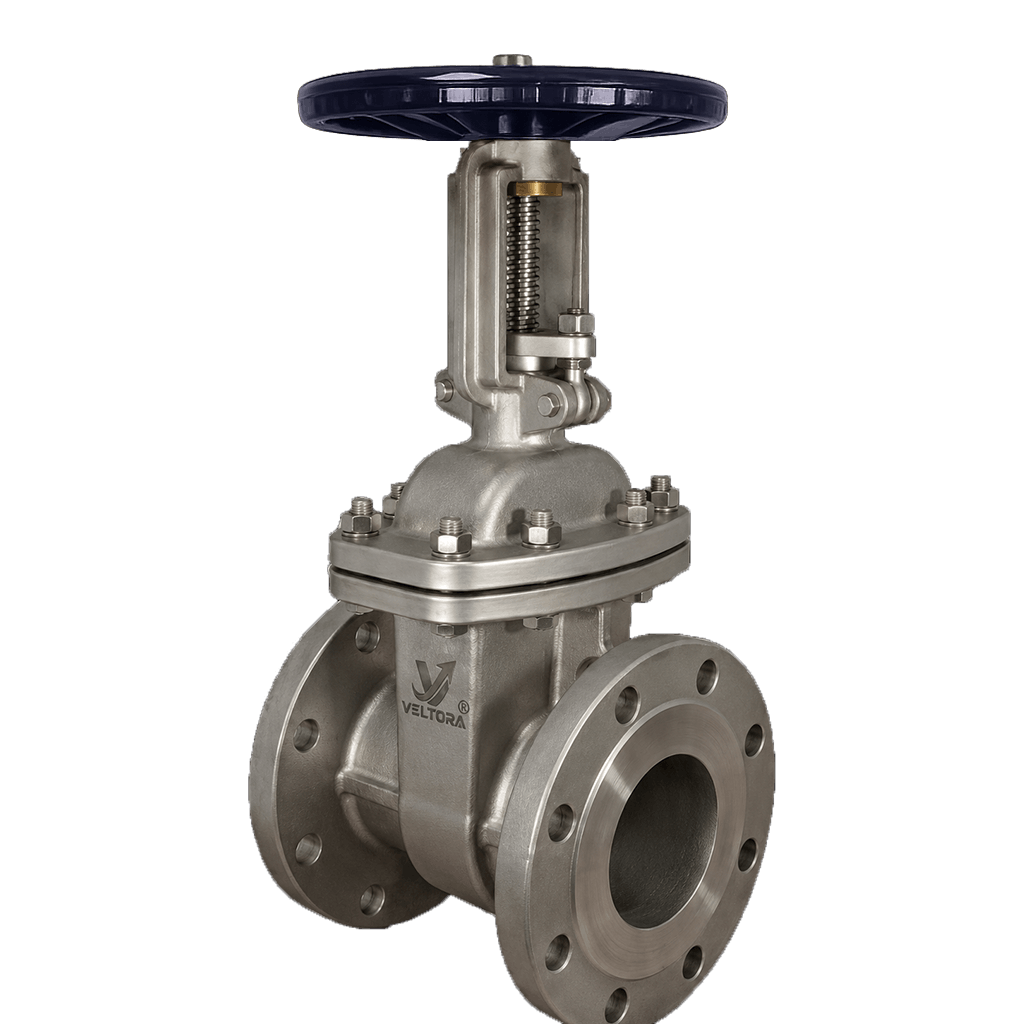

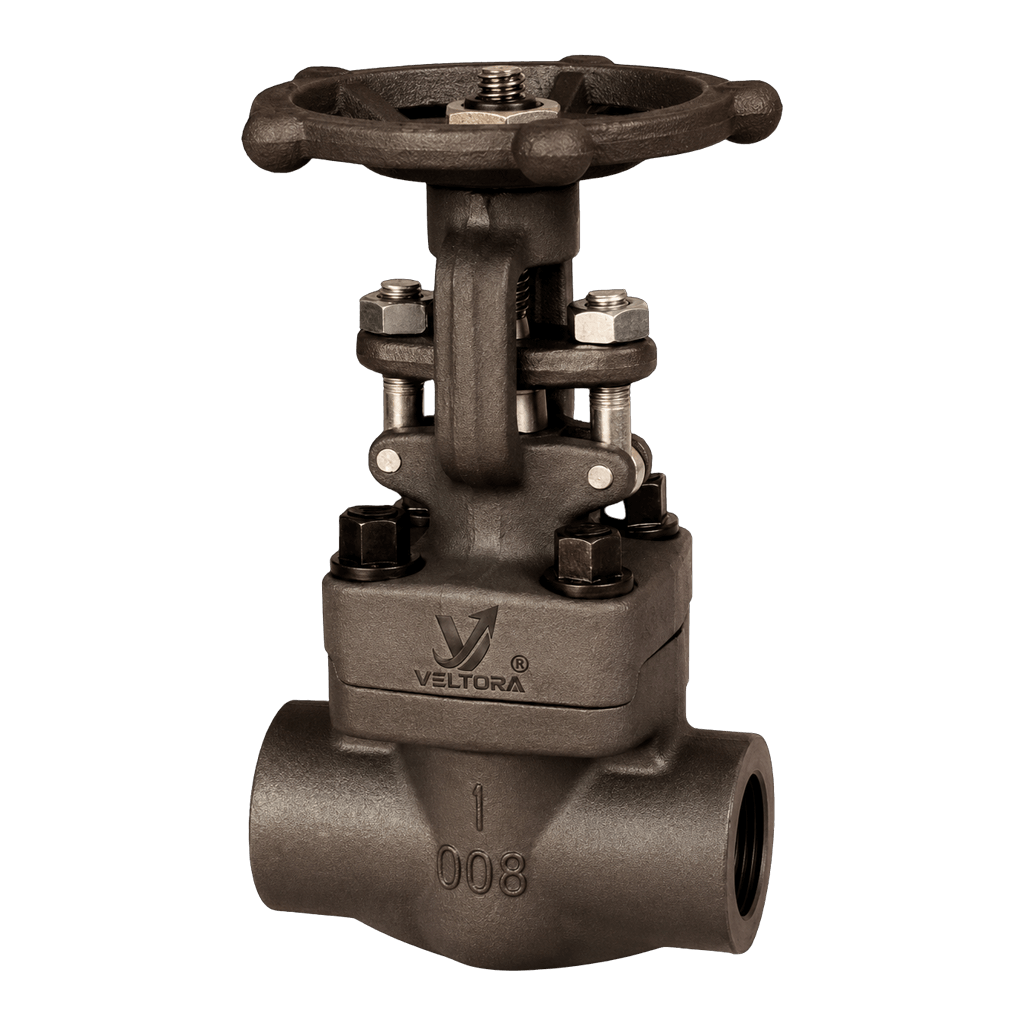

Gate Valves

High-Performance Gate Valves for Reliable Flow Isolation

At Veltora Valve Pvt. Ltd., we manufacture premium-quality Industrial Gate Valves engineered to provide dependable shut-off performance in high-pressure and high-temperature applications. Designed with precision engineering and robust construction, our gate valves ensure full-port flow, minimal pressure drop, leak-tight sealing, and long operational life, making them an ideal choice for demanding industrial processes.

VELTORA Gate Valves are engineered to provide dependable flow isolation with minimal pressure loss in industrial piping systems. Designed for full open or full closed operation, these valves feature a full-bore design that allows unrestricted flow, making them an ideal choice for applications requiring efficient fluid transfer and reliable shut-off. Built with premium-quality materials and precision engineering, VELTORA Gate Valves deliver exceptional durability, corrosion resistance, and long service life in demanding operating conditions.

Suitable for handling water, oil, gas, steam, chemicals, and other industrial media, our gate valves are available in a wide range of sizes, pressure classes, end connections, and material grades to meet diverse industry requirements. Their rugged construction ensures consistent performance while reducing maintenance and operational downtime.

Body & Trim Materials
Carbon Steel (ASTM A216 WCB, WCC, LCB)
Stainless Steel (ASTM A351 CF8, CF8M, CF3, CF3M)
Forged Carbon Steel (ASTM A105, LF2)
Forged Stainless Steel (ASTM A182 F304, F304L, F316, F316L)
Duplex Stainless Steel (ASTM A182 F51 / UNS S31803, F60 / UNS S32205)
Super Duplex Stainless Steel (ASTM A182 F53 / UNS S32750, F55 / UNS S32760)
Monel® (Alloy 400, K-500)
Inconel® (Alloy 625, Alloy 718)
Hastelloy® (C22, C276)
Titanium (Grade 2, Grade 5)
Alloy 20,Nickel (Nickel 200, Nickel 201) Bronze & Aluminium Bronze
Seat & Sealing Options

Stellite Hard Faced Seat, PTFE Seat (Application Specific),Flexible Wedge / Solid Wedge Options,Graphite Packing,Expanded Graphite Packing

Design Standards

API 600,API 602 (Forged Gate Valves),API 603 (Stainless Steel Gate Valves),ASME B16.34,BS 1414,ISO 10434

End Connection Options

Flanged End (RF / RTJ),Butt Weld End (BW),Socket Weld End (SW),Threaded End (NPT / BSP / BSPT)

Pressure Rating

ANSI Class 150 TO 2500

Size Range

½" (DN15) to 48" (DN1200)

Testing Standards

API 598,ISO 5208,MSS SP-61

Inspection Includes

Hydrostatic Shell Test,Seat Leakage Test,Back Seat Test,Hydrostatic Closure Test,Visual & Dimensional Inspection,Material Traceability Verification,Positive Material Identification (PMI) – On Request,Radiography (RT), Ultrasonic Testing (UT), Magnetic Particle Inspection (MPI) & Dye Penetrant Testing (DPT) – Available on Request

Key Features
Applications
Why Choose VELTORA Gate Valves?

VELTORA Gate Valves are manufactured to international quality standards, ensuring superior strength, reliable sealing, and long-lasting performance. Engineered for critical isolation applications, our valves help improve operational efficiency, minimize maintenance costs, and provide dependable service across a wide range of industrial processes. Whether for new installations or system upgrades, VELTORA delivers high-quality gate valves that meet the demands of modern industries.
