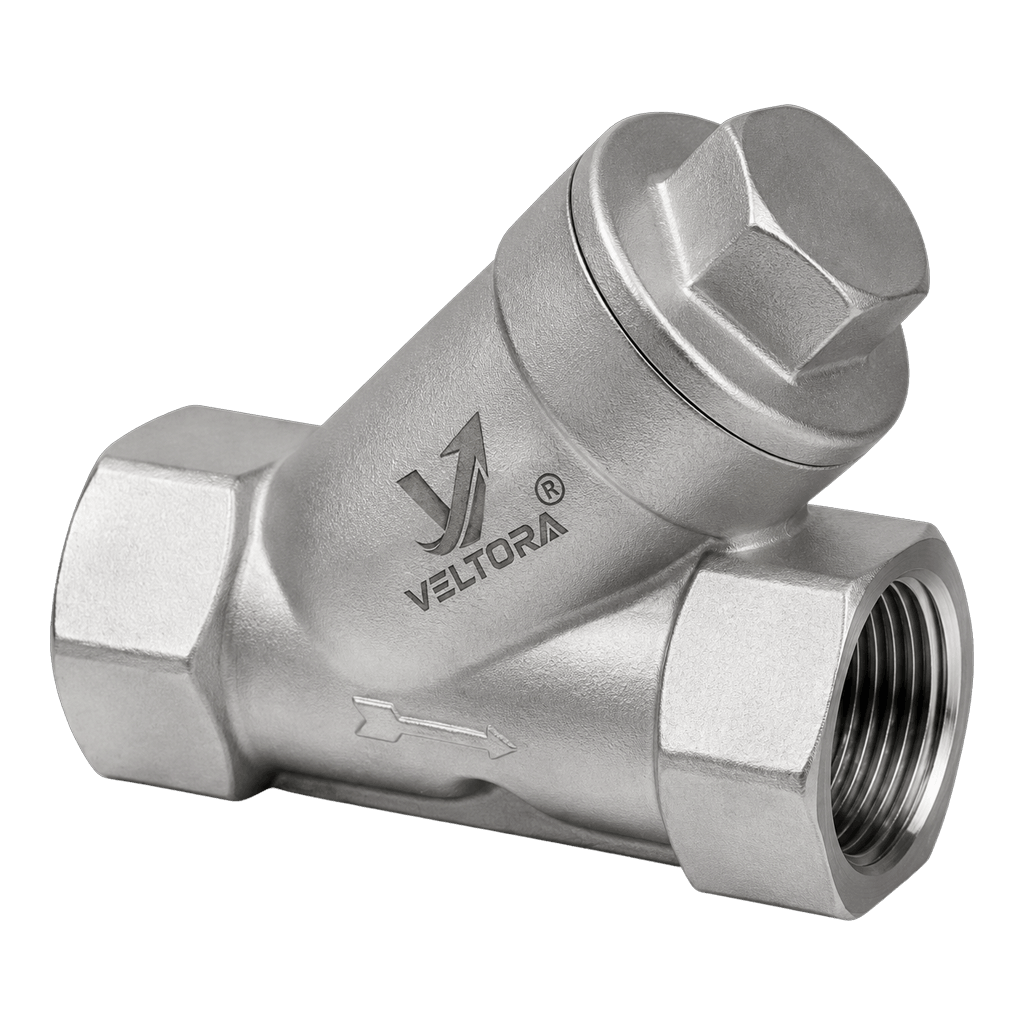

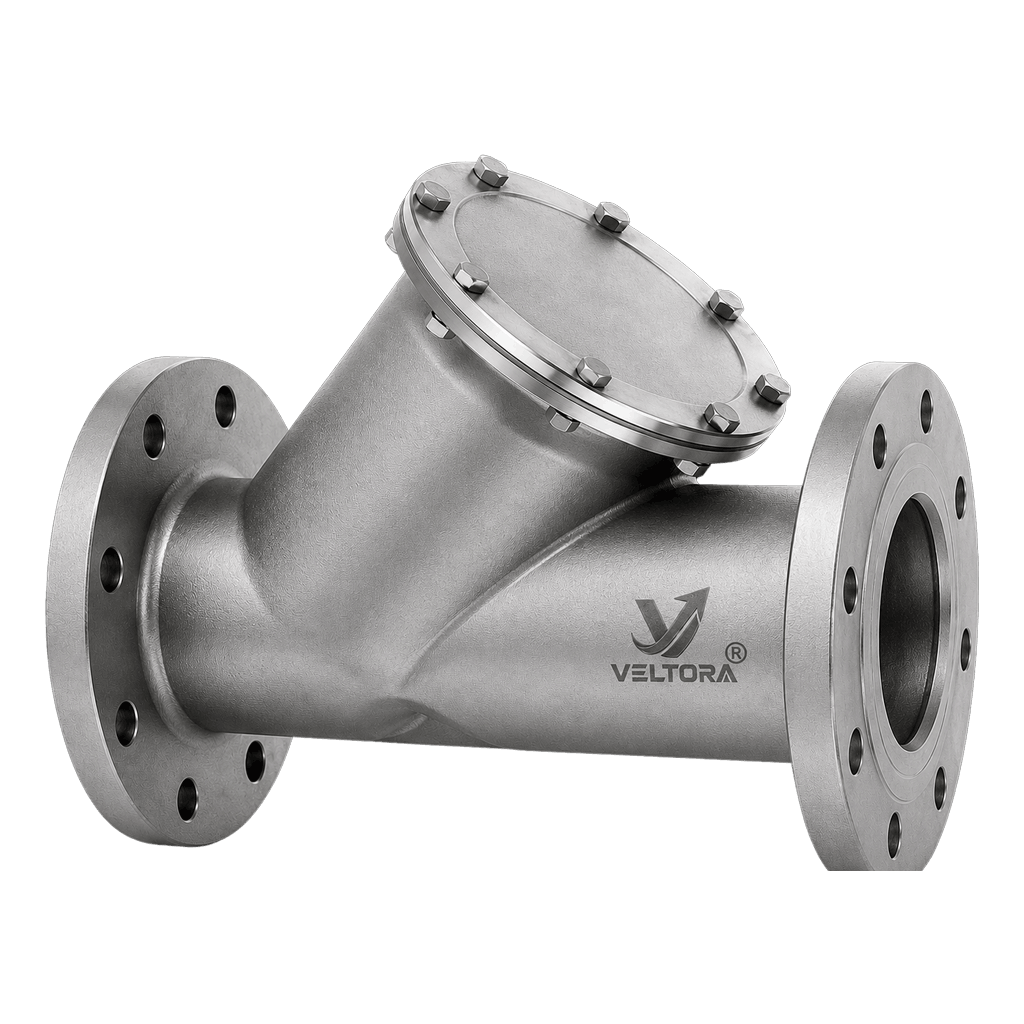

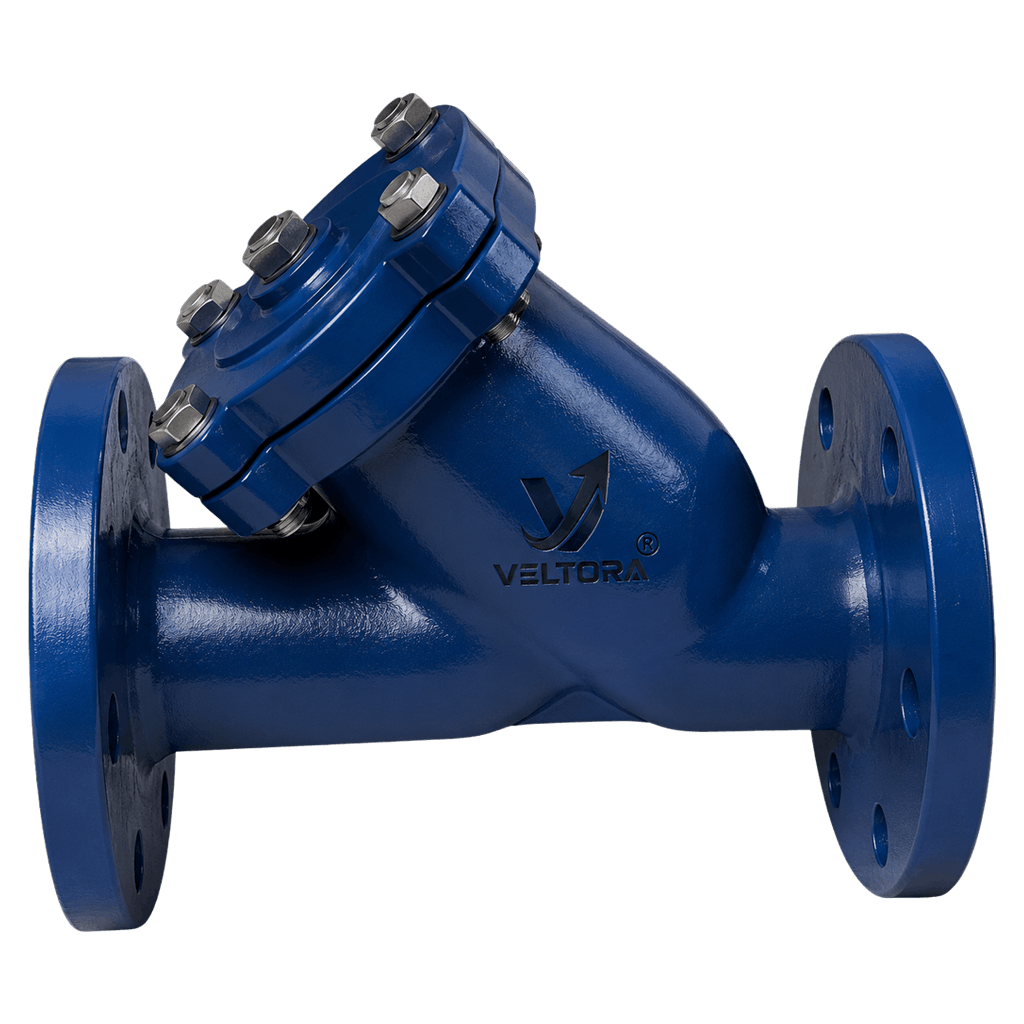

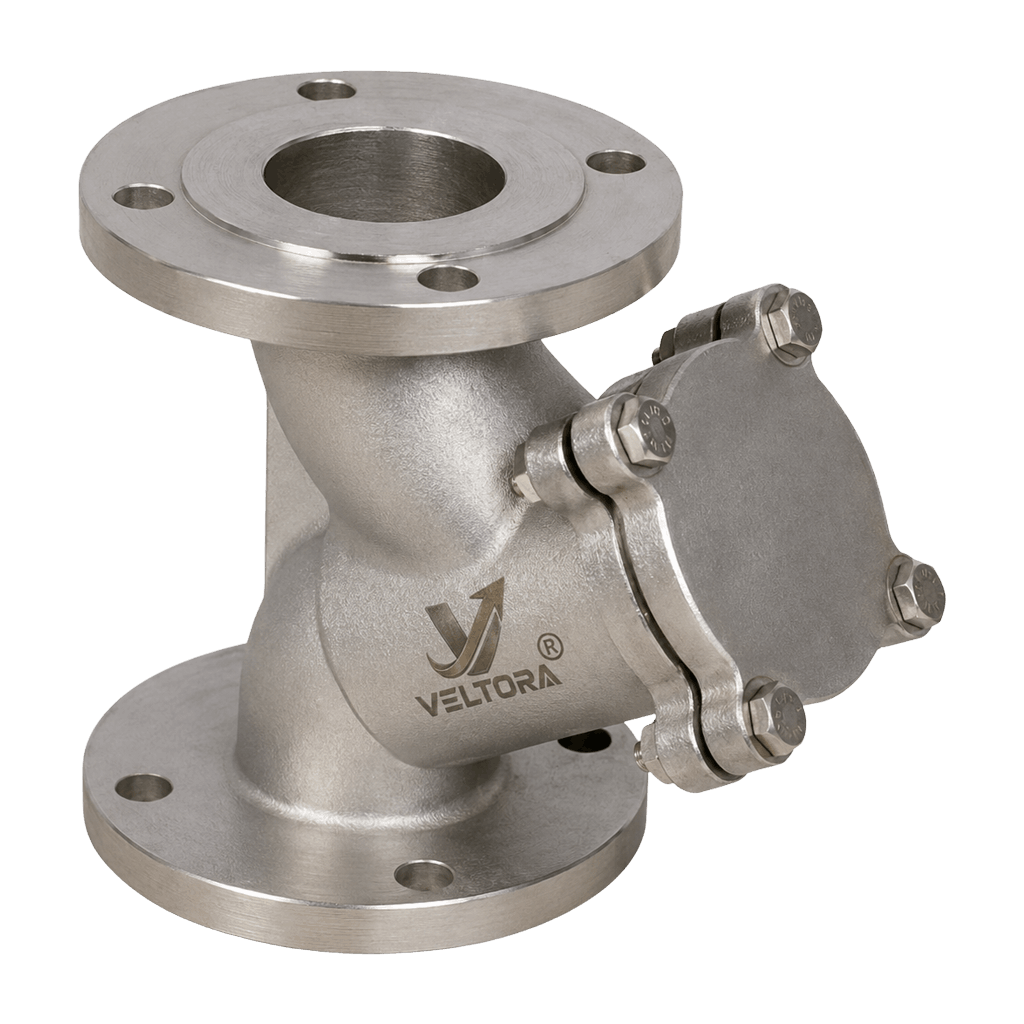

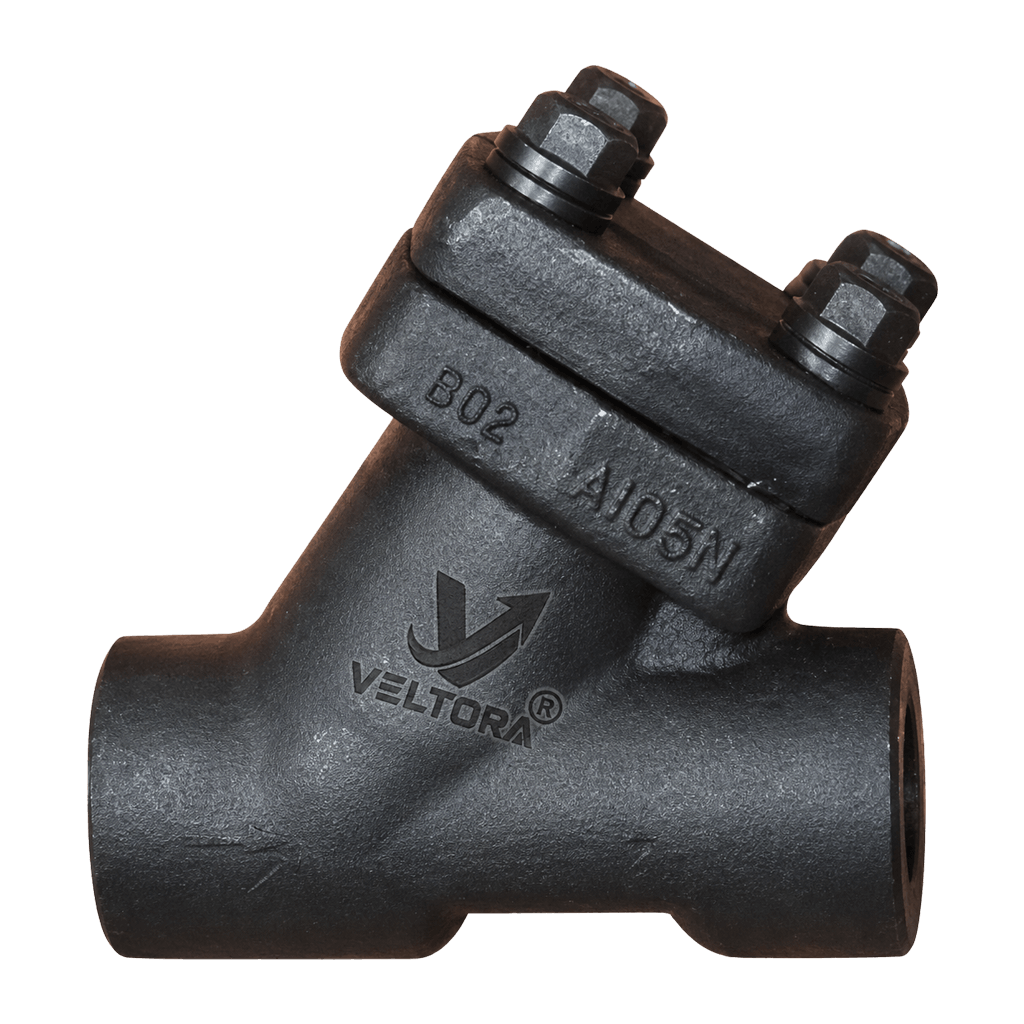

Y Type Strainers

High-Efficiency Y-Type Strainers for Reliable Pipeline Protection

At Veltora Valve Pvt. Ltd., we manufacture premium-quality Industrial Y-Type Strainers designed to protect pipelines, pumps, valves, flow meters, compressors, heat exchangers, and other critical process equipment from unwanted solid particles and contaminants. Engineered for maximum filtration efficiency and minimum pressure loss, our Y-Type Strainers help improve system reliability, reduce maintenance costs, and extend the service life of downstream equipment

Manufactured from premium-quality materials, VELTORA Y Type Strainers offer excellent durability, corrosion resistance, and long service life. Their easy-to-clean screen design minimizes maintenance and reduces downtime, making them an ideal choice for continuous industrial operations. Suitable for water, steam, oil, gas, chemicals, and other process media, our strainers are available in a wide range of sizes, pressure classes, mesh options, and material grades.

Body Materials
Carbon Steel (ASTM A216 WCB, WCC, LCB)
Stainless Steel (ASTM A351 CF8, CF8M, CF3, CF3M)
Forged Carbon Steel (ASTM A105, LF2)
Forged Stainless Steel (ASTM A182 F304, F304L, F316, F316L)
Duplex Stainless Steel (ASTM A182 F51 / UNS S31803, F60 / UNS S32205)
Super Duplex Stainless Steel (ASTM A182 F53 / UNS S32750, F55 / UNS S32760)
Screen Materials

Stainless Steel SS304,Stainless Steel SS316,Duplex Stainless Steel

Design Standards

SME B16.34,ASME B16.5,ASME B16.25,MSS SP-71,BS 1873 (Where Applicable),DIN & ISO Standards (On Request)

End Connection Options

Flanged End (RF / RTJ),Threaded End (NPT / BSP / BSPT),Butt Weld End (BW),Socket Weld End (SW)

Pressure Rating

NSI Class 150 TO 2500 PN10 TO PN40

Size Range

½" (DN15) to 24" (DN600)

Testing Standards

API 598,ISO 5208,MSS SP-61

Inspection Includes

Hydrostatic Shell Test,Body Integrity Test,Visual & Dimensional Inspection,Material Traceability Verification,Screen Inspection & Mesh Verification,Positive Material Identification (PMI) – On Request,Ultrasonic Testing (UT) – On Request,Radiographic Testing (RT) – On Request,Magnetic Particle Inspection (MPI) – On Request,Dye Penetrant Testing (DPT) – On Request

Key Features
Applications
Why Choose VELTORA Y Type Strainers?

VELTORA Y Type Strainers are manufactured to international quality standards, delivering reliable filtration, superior equipment protection, and long-lasting performance. Designed to minimize maintenance costs and improve system reliability, our strainers effectively remove contaminants while maintaining optimal flow conditions. Whether installed in process lines or utility systems, VELTORA Y Type Strainers provide dependable protection for critical industrial equipment.
